NEC SEFUSE SCHOTT SF-E Series |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Name：NEC SEFUSE SCHOTT SF-E Series |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hits：15442 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Description： |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

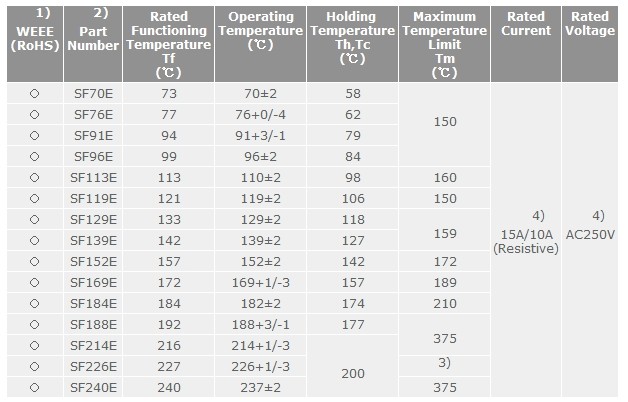

The NEC SF-E Series Rating as below:
SF70E,SF76E,SF91E, SF113E, SF119E,SF129E,SF139E,SF152E,SF169E,SF184E,SF214E, SF226E, SF240E
Reamarks:
1) No use of hazardous substances prescribed by WEEE and RoHS.

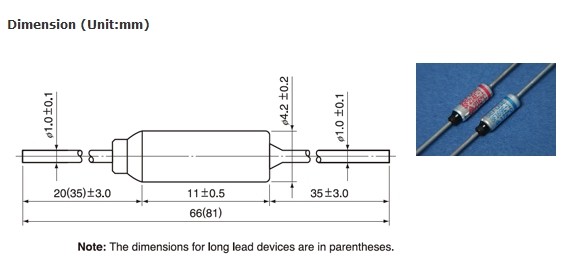

With the exception of SF91E, all of the products do not use SVHC prescribed by REACH (46 substances, 15 Dec 2010). 2) Part number indicates thermal cutoffs with standard lead lengths. For long lead length type, add the suffix "-1" at the end of the part number. 3) The maximum temerature limit Tm of SF226E is shown in the following table:
4) The electrical ratings according to the various safety standards are shown in the following table:
5) The following SF-types have passed the Conductive Heat Aging Test (CH) specified by the UL safety standard : SF169E, SF184E, SF188E, SF214E, SF226E and SF240E.
6) SF/E is available for rating 10A and 15A marking for CCC standard. Please select suitable rating product according to the specification of end-application. 7) SF/E is available for rating 10A and 15A marking for PSE standard. Rating 10A marking is applied for Article 1, and Rating 15A marking is applied for Article 2 of the technical requirement of the METI ordinance J60691. Please select suitable rating product according to the specificatoin of end-application.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
